spiral anchors

CRACK REPAIR


Structural walls made of brick, stone, concrete

INJECTION WITH ANCHOR

inserted in the injection hole, forms a kind of armament

INCREASE IN LOAD CAPACITY

Walls, columns, girders, beams, slabs, foundations

WALL REINFORCEMENT

in contemporary objects

HAMMPACK SPIRAL HAMMER are used for anchoring, splicing damaged walls, and stabilizing buckled walls. Each spiral anchor in our offer is made of high quality stainless steel resistant to compression and tension.

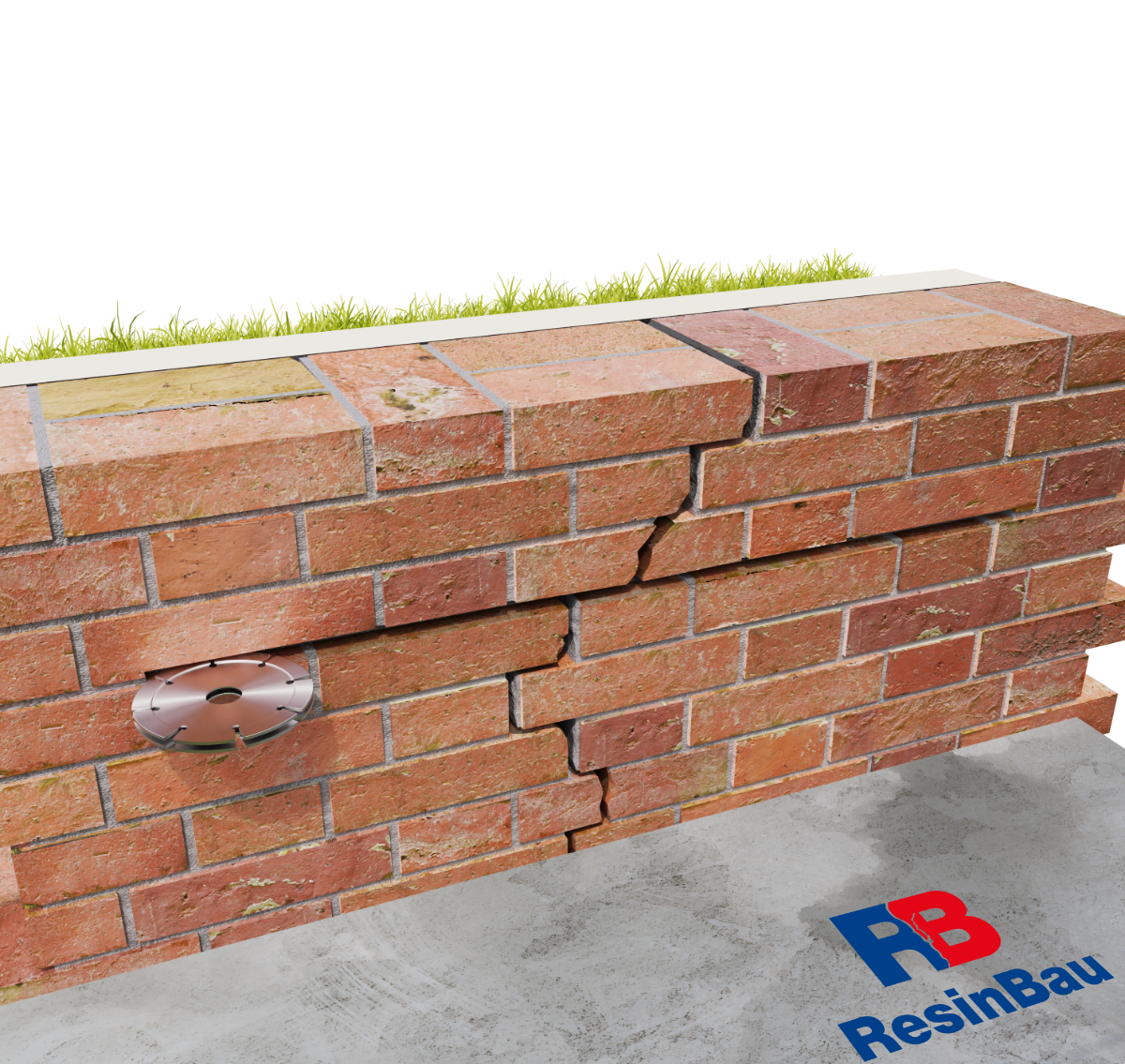

STAGE I

Repair works should begin from making grooves in accordance with the design guidelines. It is recommended that the groove should have the same length on both sides of the slot

STAGE II

After making grooves for anchors the dust should be removed from them. The cleaning process can be carried out with air and/or water jet.

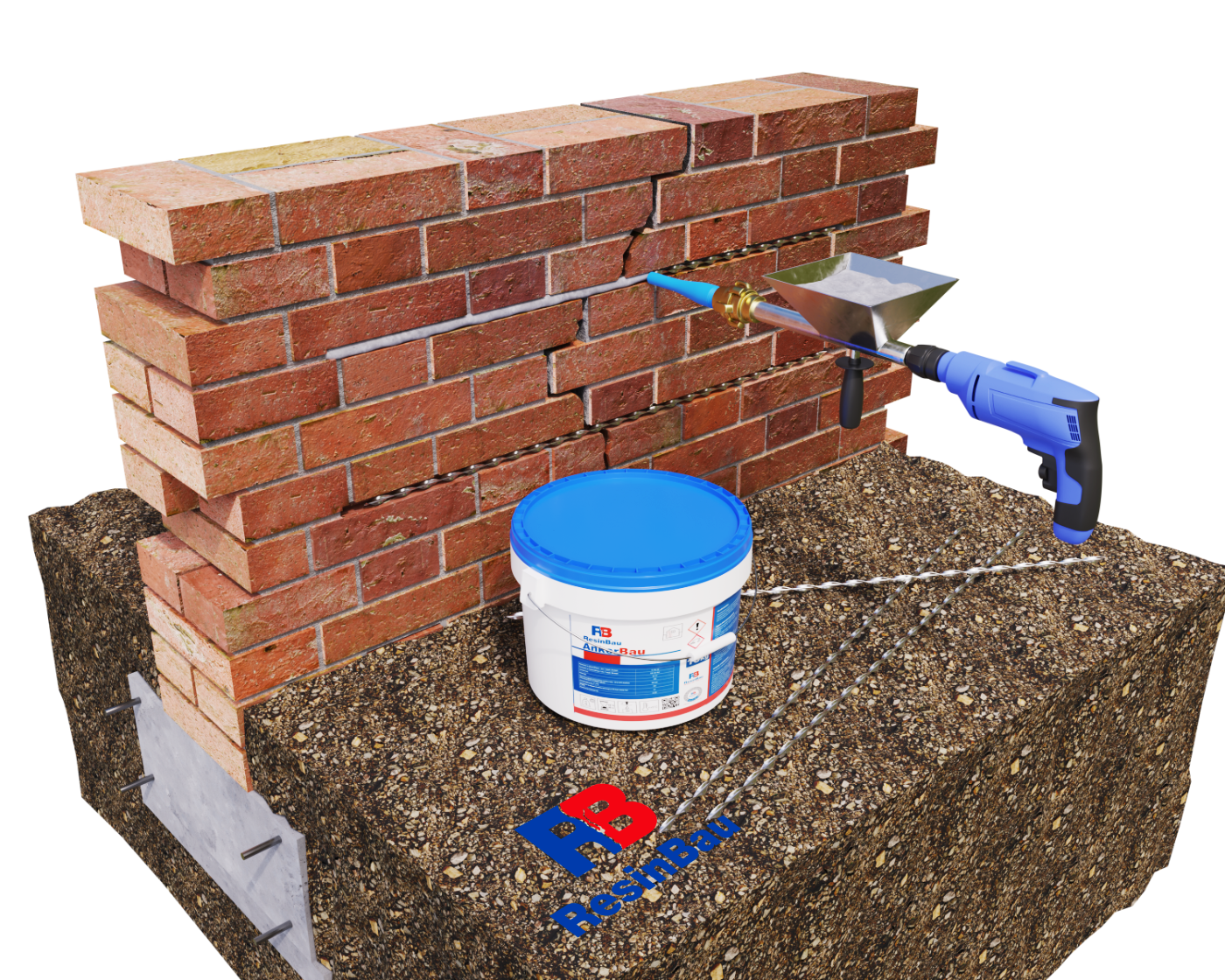

STAGE III

The next step is to fill the groove with the first layer of mortar with a thickness of about 10 mm and to place in it properly cut earlier anchor.

STAGE IV

The next stage of work is the application of the second layer of mortar and smoothing the joint with a spatula.
The open cracks should be filled with appropriate grout.
After approximately 24 hours when the binder is dry you can proceed with plastering the places after the works.
