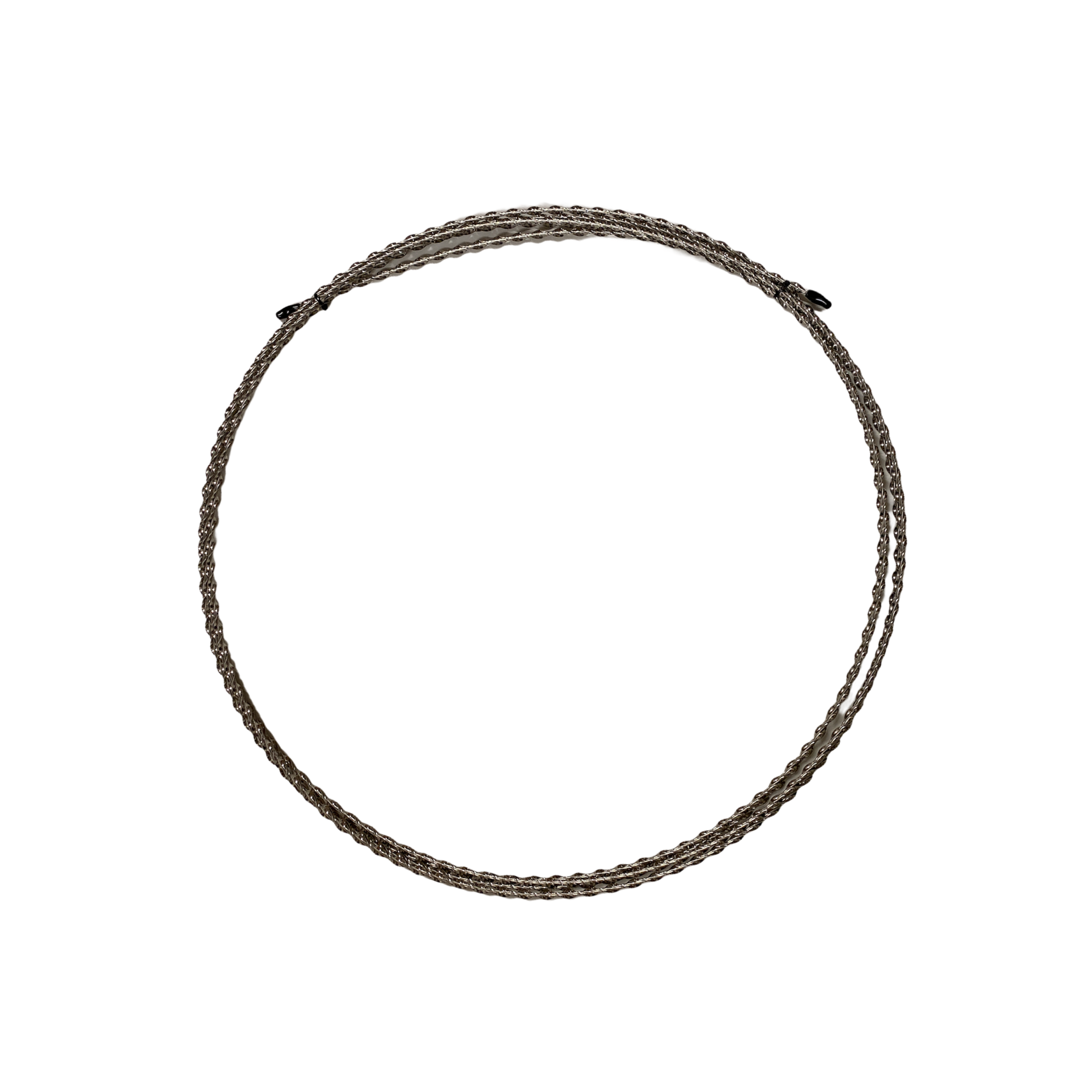

Anchor diameter: 10 mm
Sectional area [mm²]: 13.00
Yield strength [MPa]: 474,10
Tensile strength [MPa]: 1006.30
Modulus [GPa]: 143.50
Please refer to the table below for the dimensions of the groove for the spiral anchors, together with the approximate mortar consumption for the anchors:
min. total anchor length (brick / stone / mixed masonry) – 1000 mm
min. total anchor length (concrete) – 600 mm
We cut the anchors to the specified dimensions on request.
For more design suggestions, please refer to the Hammpack Spiral Hammer technical documentation.
